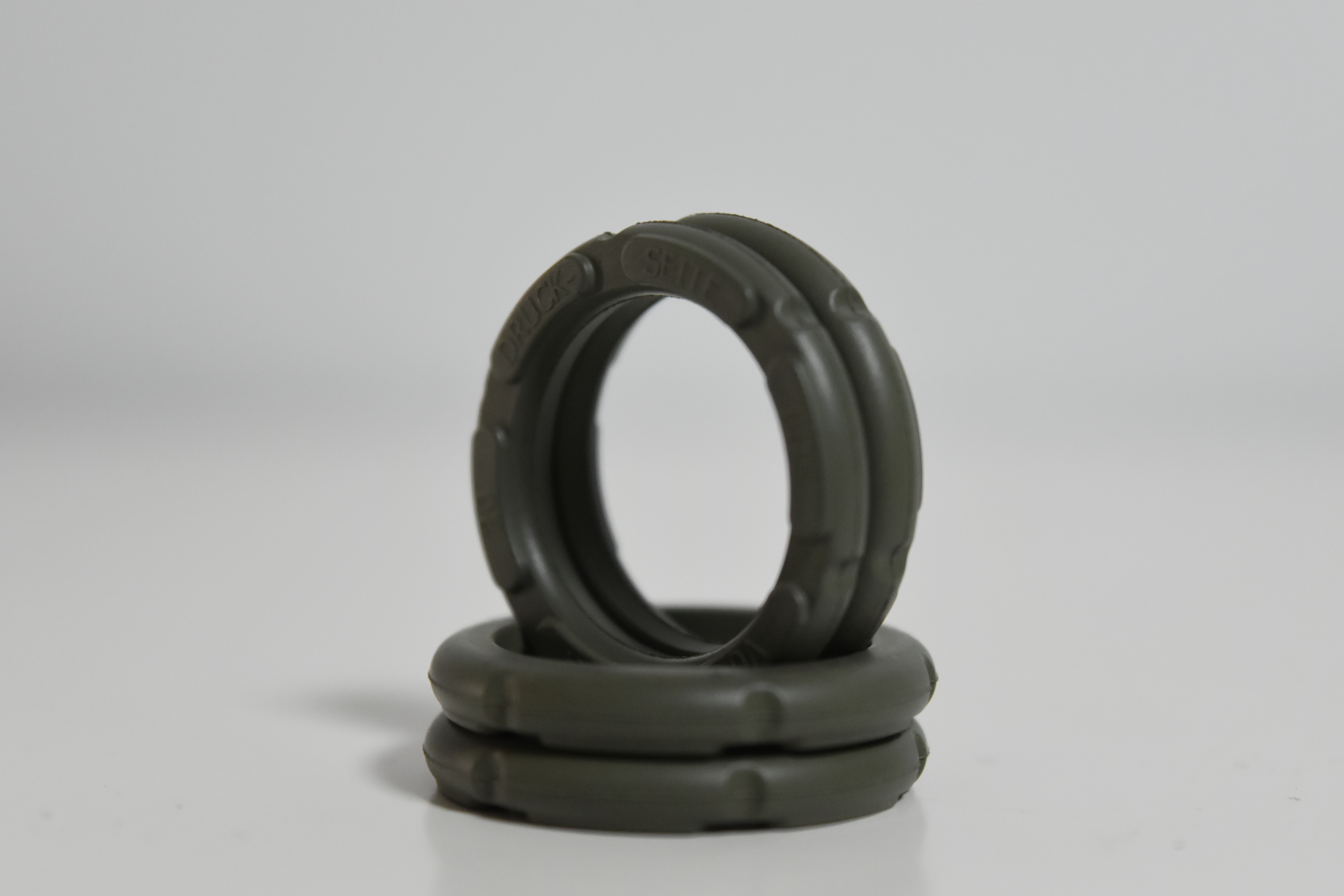

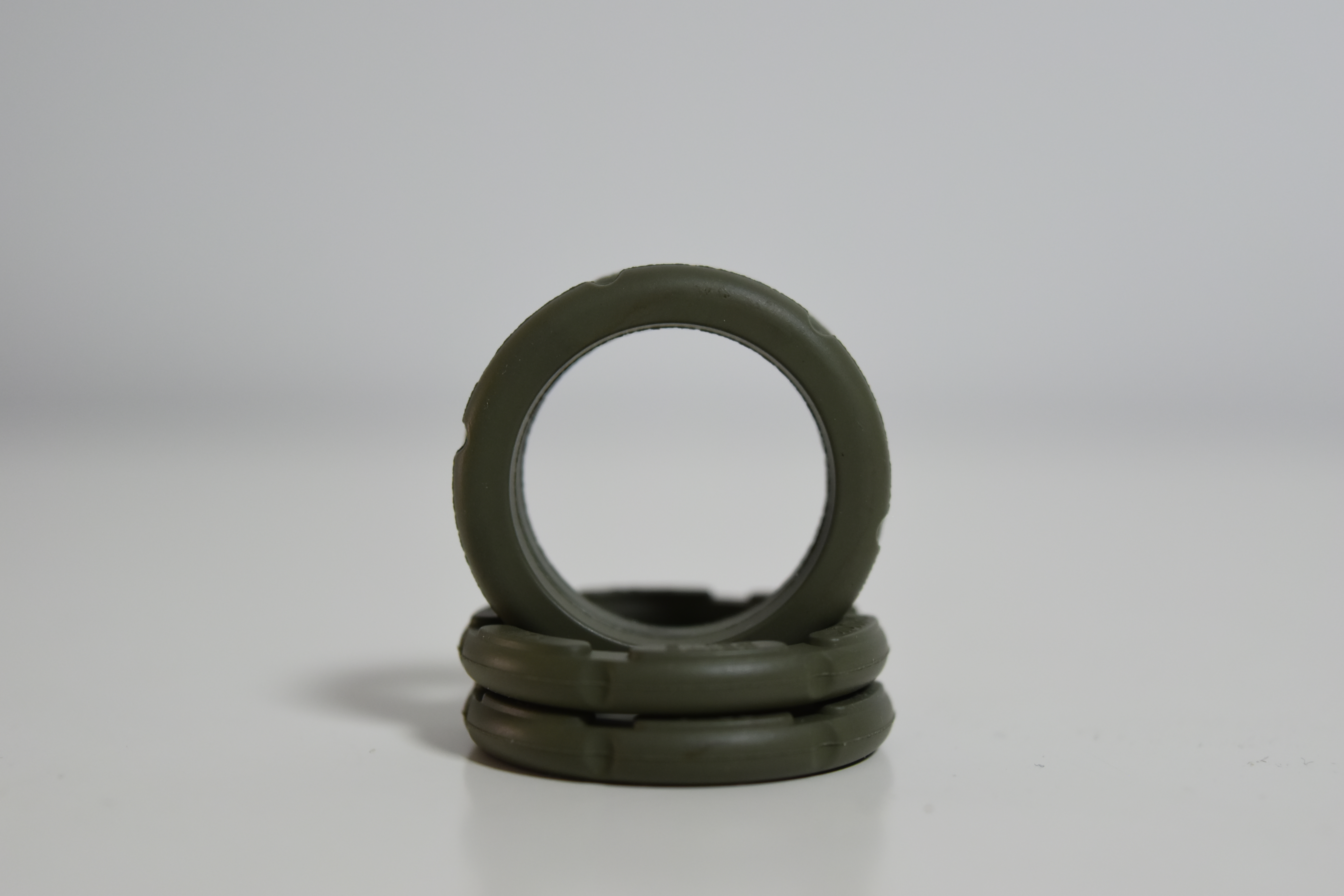

V6 쿠션(Cushion) 씰 (Seals)

품명: 쿠셔닝 씰 V6

        Cushioning Seal V6



Cushioning Seal Series V6



재료별 사양

화합물명	폴리머 코드	색상	온도 범위 (℃)	표면 속도
NBR	N3578A75	Black	-30~100 (Short 120)	≤ 1 m/s
FKM, VITON	V3681A90	Artemisiagreen	-20~200 (Short 230)	≤ 1 m/s
EPDM	E3676A75	Black	-50~150 (Short 200)	≤ 1 m/s
NBR	N4180A80	Black	-40~121	≤ 1 m/s
NBR	N8613A80	Black	-50~80 (Short 100)	≤ 1 m/s
Ultrathane	P4622A90	Yellow	-54~107	≤ 1 m/s
FKM, VITON	V3839A90	Green	-20~200 (Short 230)	≤ 1 m/s



재료에 따라 제품의 색상은

변경될 수 있습니다~

Cushion Seal Series V6

리드 타임: 평균 약 6~12 주



납기: 재고 유무에 따라 약 2~4 일

         최대 리드 타임 후 공급될 수 있습니다~~

공압 실린더용 쿠션 씰 V6

Part Number	Code	Material	ID [㎜]	OD [㎜]	Thickness
V61004N3578	N3578	NBR	10.00	18.00	4.10
V61004N8613	N8613	NBR
V61004V3681	V3681	FKM
V61004V3839	V3839	FKM
V61204N3578	N3578	NBR	12.00	20.00	4.00
V61204N8613	N8613	NBR
V61204V3681	V3681	FKM
V61204V3839	V3839	FKM
V61404N3578	N3578	NBR	14.00	22.00	4.00
V61404N8613	N8613	NBR
V61404V3681	V3681	FKM
V61404V3839	V3839	FKM
V61604N3578	N3578	NBR	16.00	24.00	4.00
V61604N8613	N8613	NBR
V61604V3681	V3681	FKM
V61604V3839	V3839	FKM
V61804N3578	N3578	NBR	18.00	26.00	4.00
V61804N8613	N8613	NBR
V61804V3681	V3681	FKM
V61804V3839	V3839	FKM
V62004N3578	N3578	NBR	20.00	28.00	4.00
V62004N8613	N8613	NBR
V62004V3681	V3681	FKM
V62004V3839	V3839	FKM
V62204N3578	N3578	NBR	22.00	30.00	4.00
V62204N8613	N8613	NBR
V62204V3681	V3681	FKM
V62204V3839	V3839	FKM
V62404N3578	N3578	NBR	24.00	32.00	4.00
V62404N8613	N8613	NBR
V62404V3681	V3681	FKM
V62404V3839	V3839	FKM
V62504N3578	N3578	NBR	25.00	33.00	4.00
V62504N8613	N8613	NBR
V62504V3681	V3681	FKM
V62504V3839	V3839	FKM
V62605N3578	N3578	NBR	26.00	36.00	5.00
V62605N8613	N8613	NBR
V62605V3681	V3681	FKM
V62605V3839	V3839	FKM
V62805N3578	N3578	NBR	28.00	38.00	5.00
V62805N8613	N8613	NBR
V62805V3681	V3681	FKM
V62805V3839	V3839	FKM
V63005N3578	N3578	NBR	30.00	40.00	5.00
V63005N8613	N8613	NBR
V63005V3681	V3681	FKM
V63005V3839	V3839	FKM
V63205N3578	N3578	NBR	32.00	42.00	5.00
V63205N8613	N8613	NBR
V63205V3681	V3681	FKM
V63205V3839	V3839	FKM
V63405N3578	N3578	NBR	34.00	44.00	5.00
V63405N8613	N8613	NBR
V63405V3681	V3681	FKM
V63405V3839	V3839	FKM
V63505N3578	N3578	NBR	35.00	45.00	5.00
V63505N8613	N8613	NBR
V63505V3681	V3681	FKM
V63505V3839	V3839	FKM
V63605N3578	N3578	NBR	36.00	46.00	5.00
V63605N8613	N8613	NBR
V63605V3681	V3681	FKM
V63605V3839	V3839	FKM
V63805N3578	N3578	NBR	38.00	48.00	5.00
V63805N8613	N8613	NBR
V63805V3681	V3681	FKM
V63805V3839	V3839	FKM
V64005N3578	N3578	NBR	40.00	50.00	5.00
V64005N8613	N8613	NBR
V64005V3681	V3681	FKM
V64005V3839	V3839	FKM
V64505N3578	N3578	NBR	45.00	55.00	5.00
V64505N8613	N8613	NBR
V64505V3681	V3681	FKM
V64505V3839	V3839	FKM
V65005N3578	N3578	NBR	50.00	60.00	5.00
V65005N8613	N8613	NBR
V65005V3681	V3681	FKM
V65005V3839	V3839	FKM
V65507N3578	N3578	NBR	55.00	69.00	7.00
V65507N8613	N8613	NBR
V65507V3681	V3681	FKM
V65507V3839	V3839	FKM
V66007N3578	N3578	NBR	60.00	74.00	7.00
V66007N8613	N8613	NBR
V66007V3681	V3681	FKM
V66007V3839	V3839	FKM
V66507N3578	N3578	NBR	65.00	79.00	7.00
V66507N8613	N8613	NBR
V66507V3681	V3681	FKM
V66507V3839	V3839	FKM
V67007N3578	N3578	NBR	70.00	84.00	7.00
V67007N8613	N8613	NBR
V67007V3681	V3681	FKM
V67007V3839	V3839	FKM
V68007N3578	N3578	NBR	80.00	94.00	7.00
V68007N8613	N8613	NBR
V68007V3681	V3681	FKM
V68007V3839	V3839	FKM
V6A007N3578	N3578	NBR	100.00	114.00	7.00
V6A007N8613	N8613	NBR
V6A007V3681	V3681	FKM
V6A007V3839	V3839	FKM
V6B007N3578	N3578	NBR	110.00	124.00	7.00
V6B007N8613	N8613	NBR
V6B007V3681	V3681	FKM
V6B007V3839	V3839	FKM
