상표: Parker Hannifin
Parker Hannifin Korea
파카 하니핀
파카 하니핀 코리아
파커 하니핀
파커 하니핀 코리아

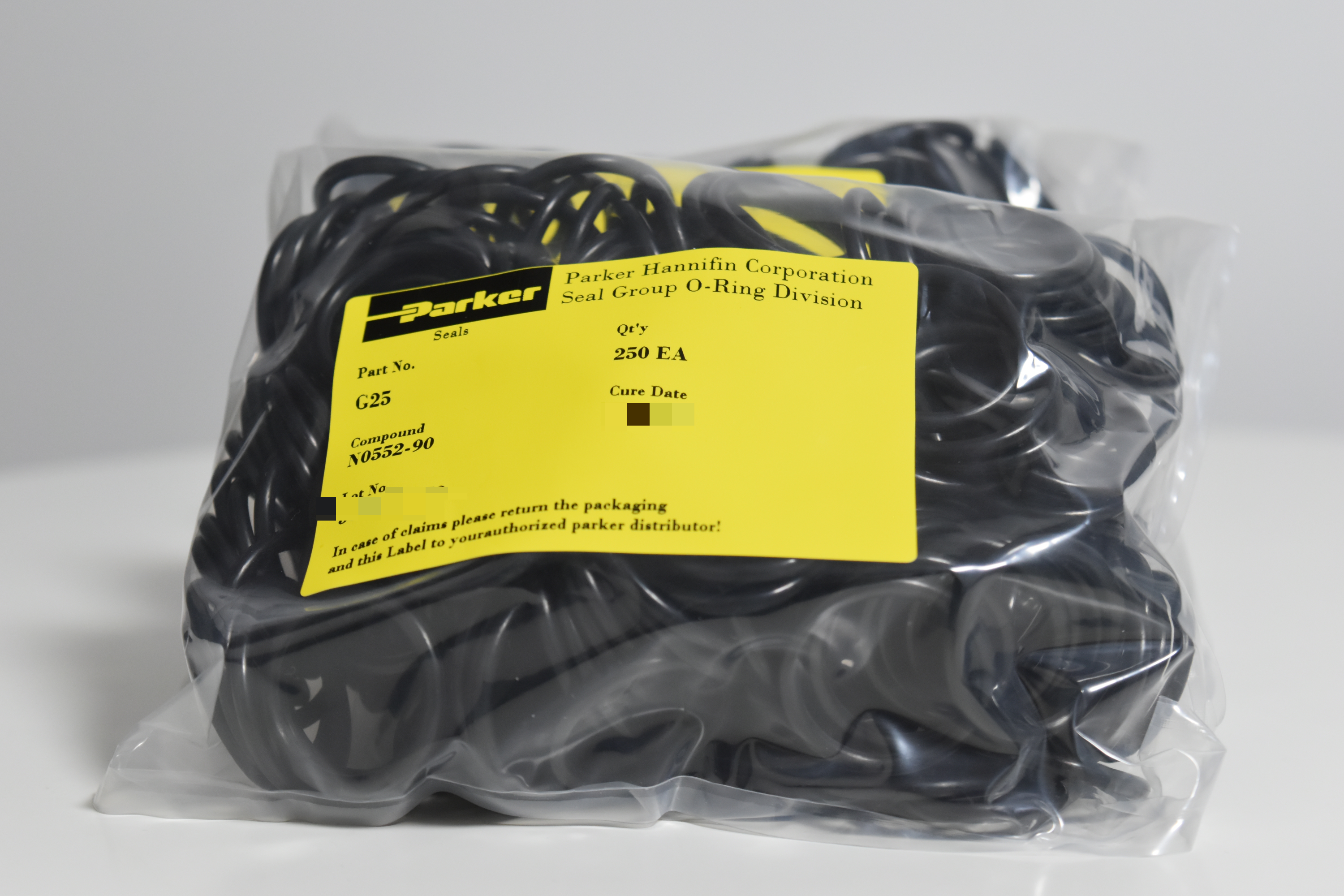

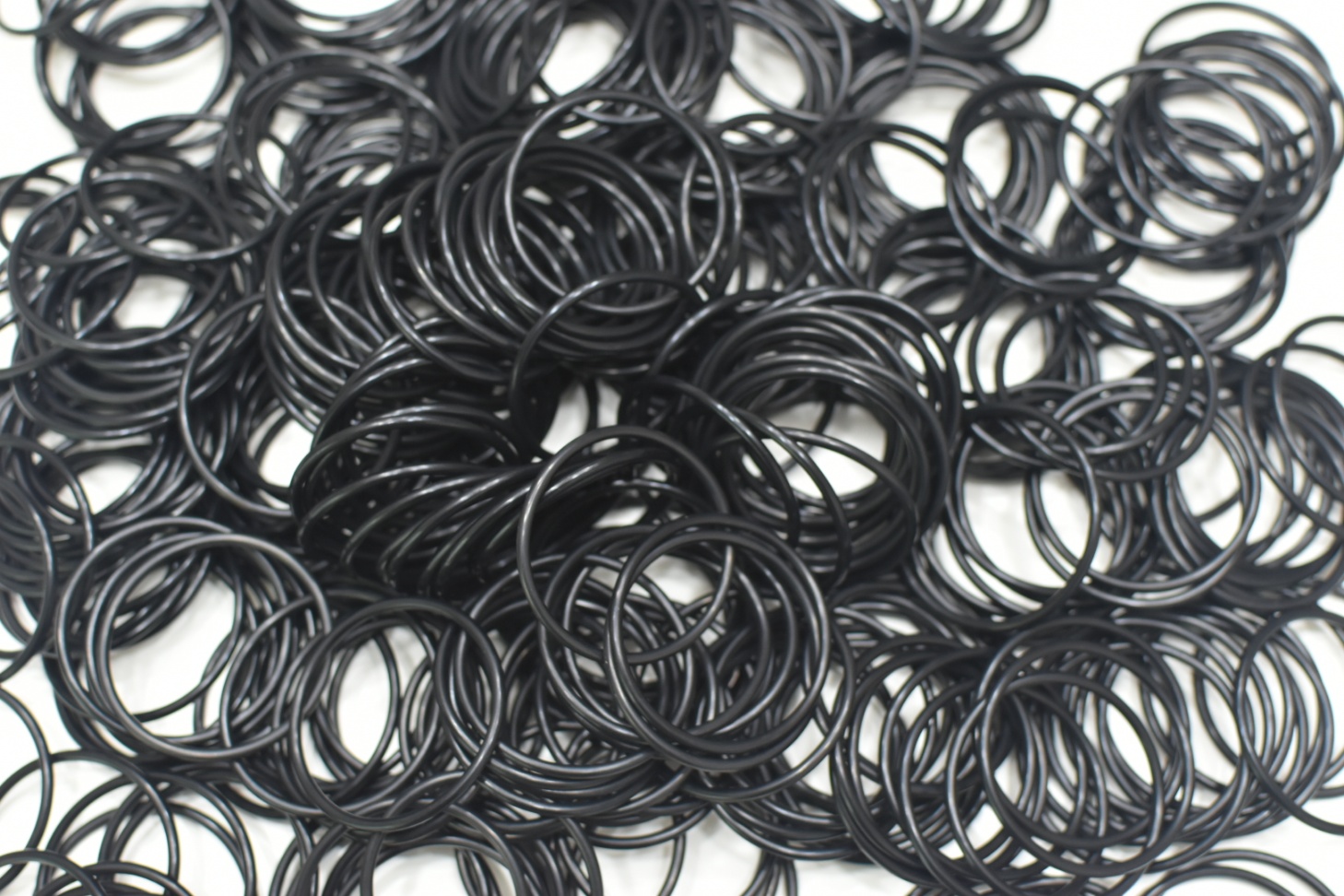

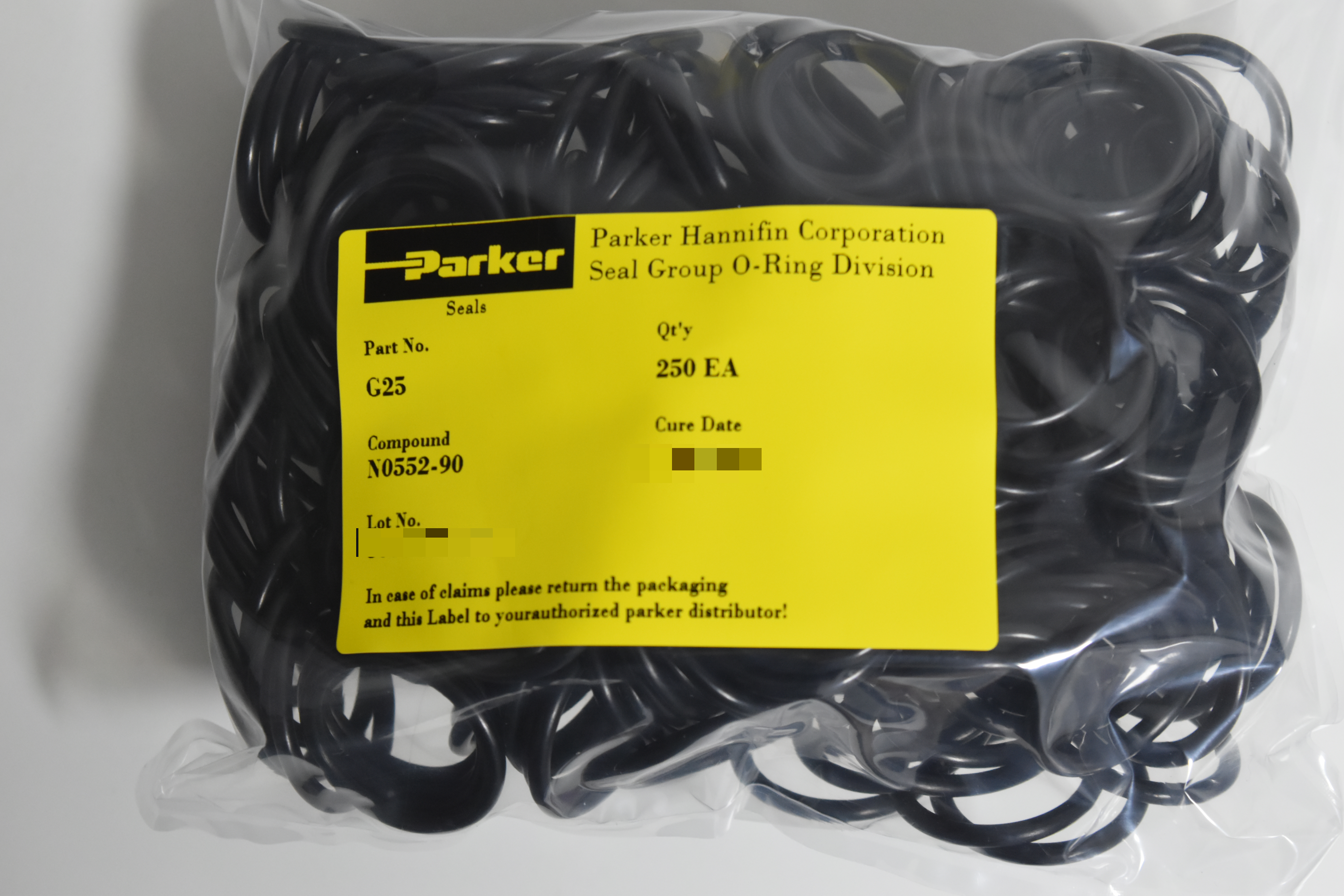

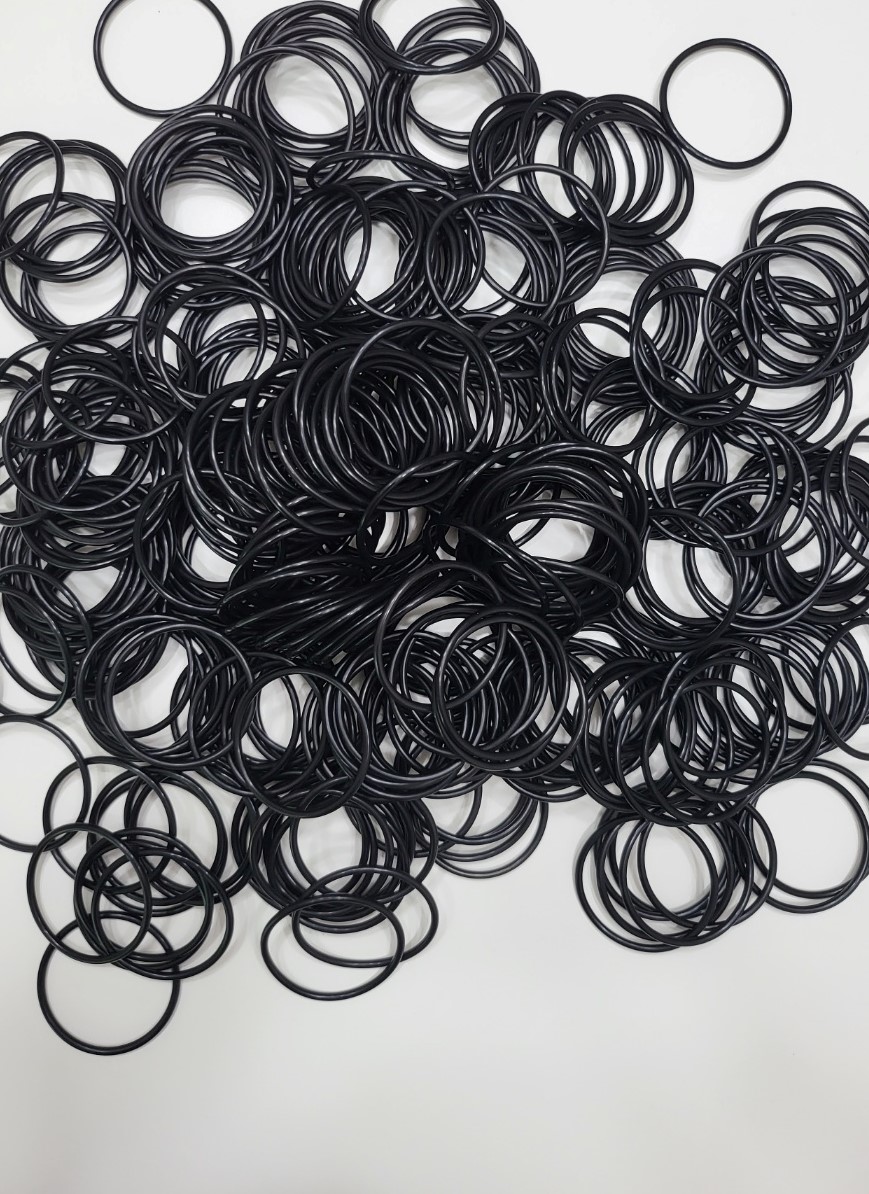

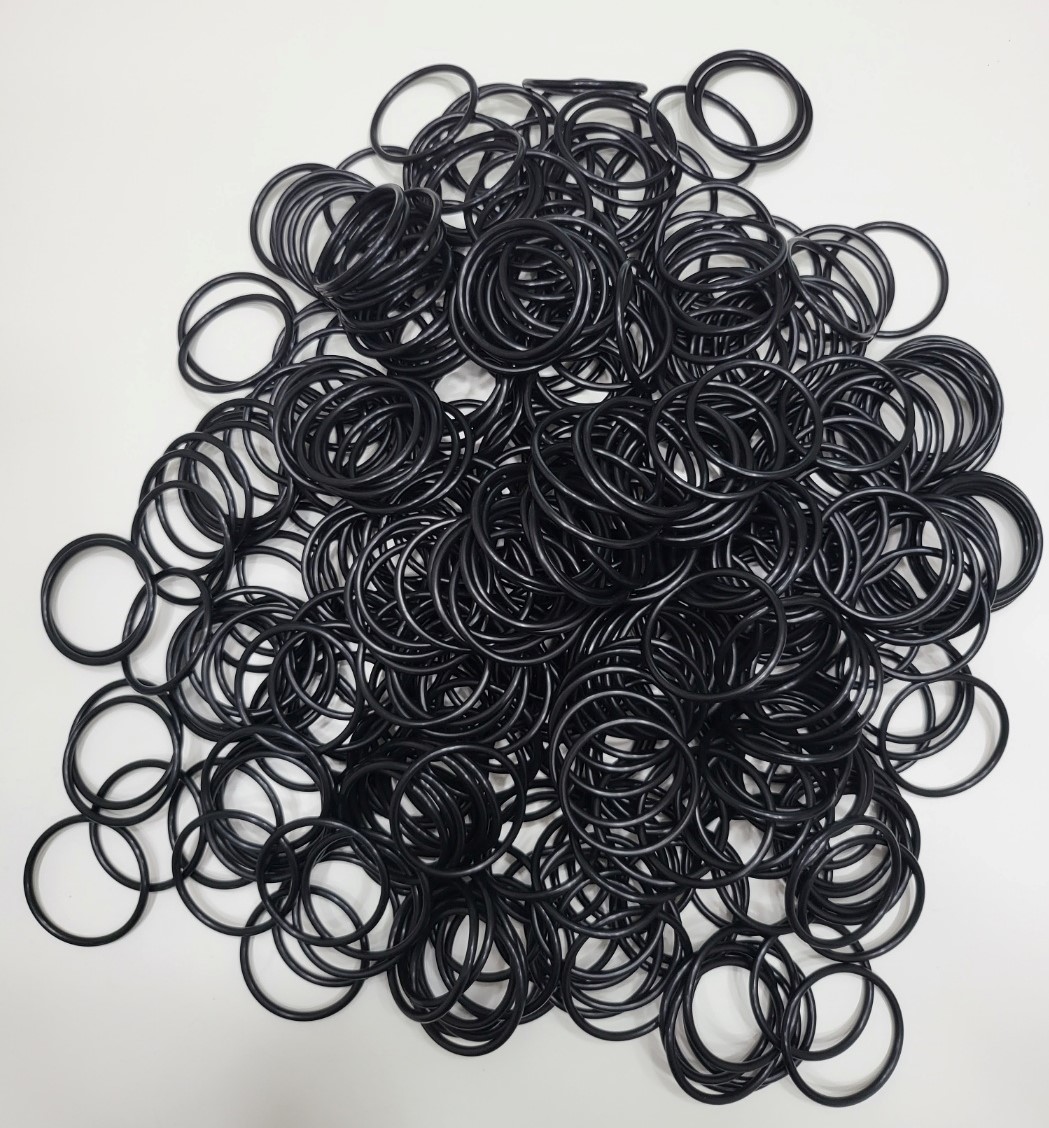

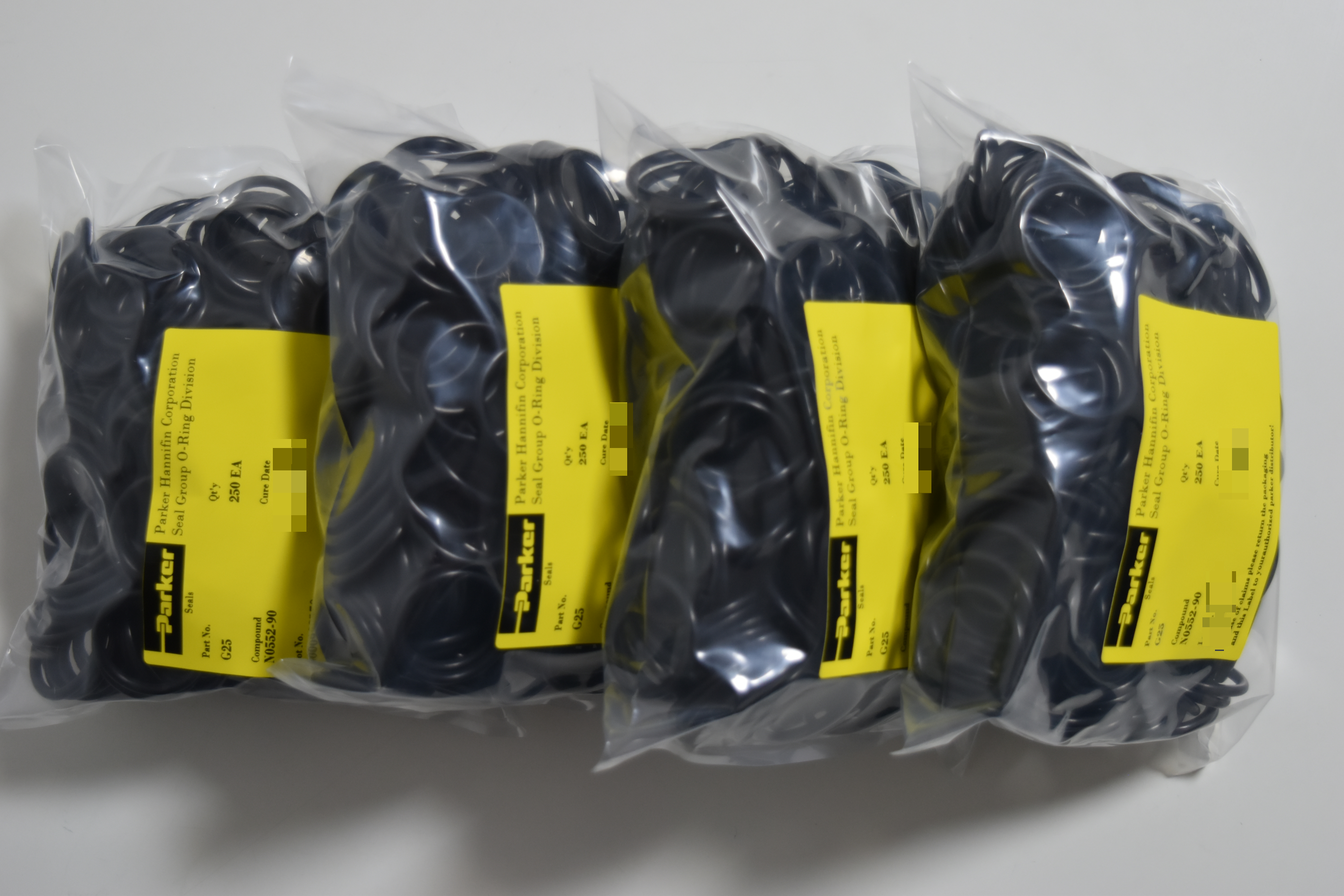

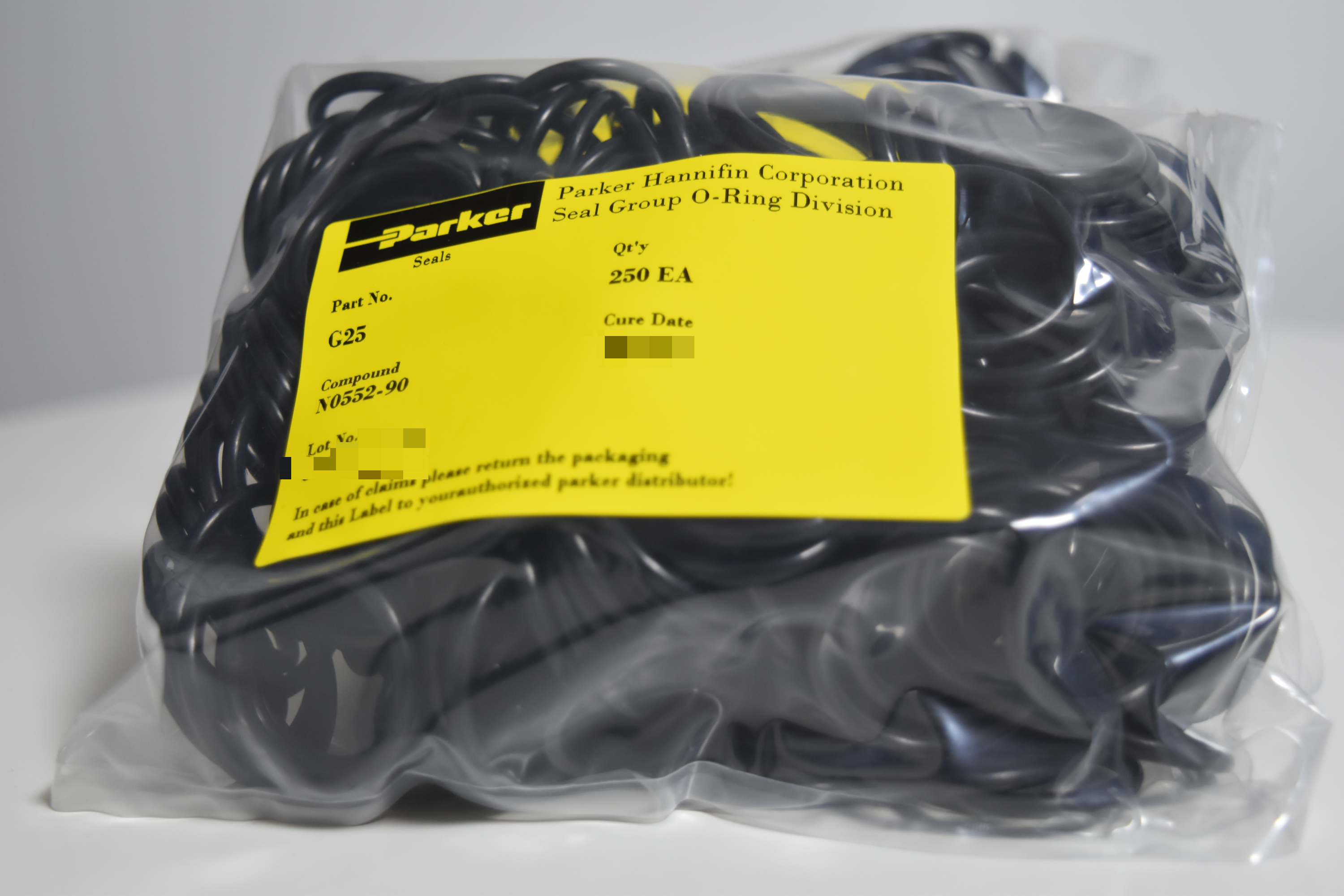

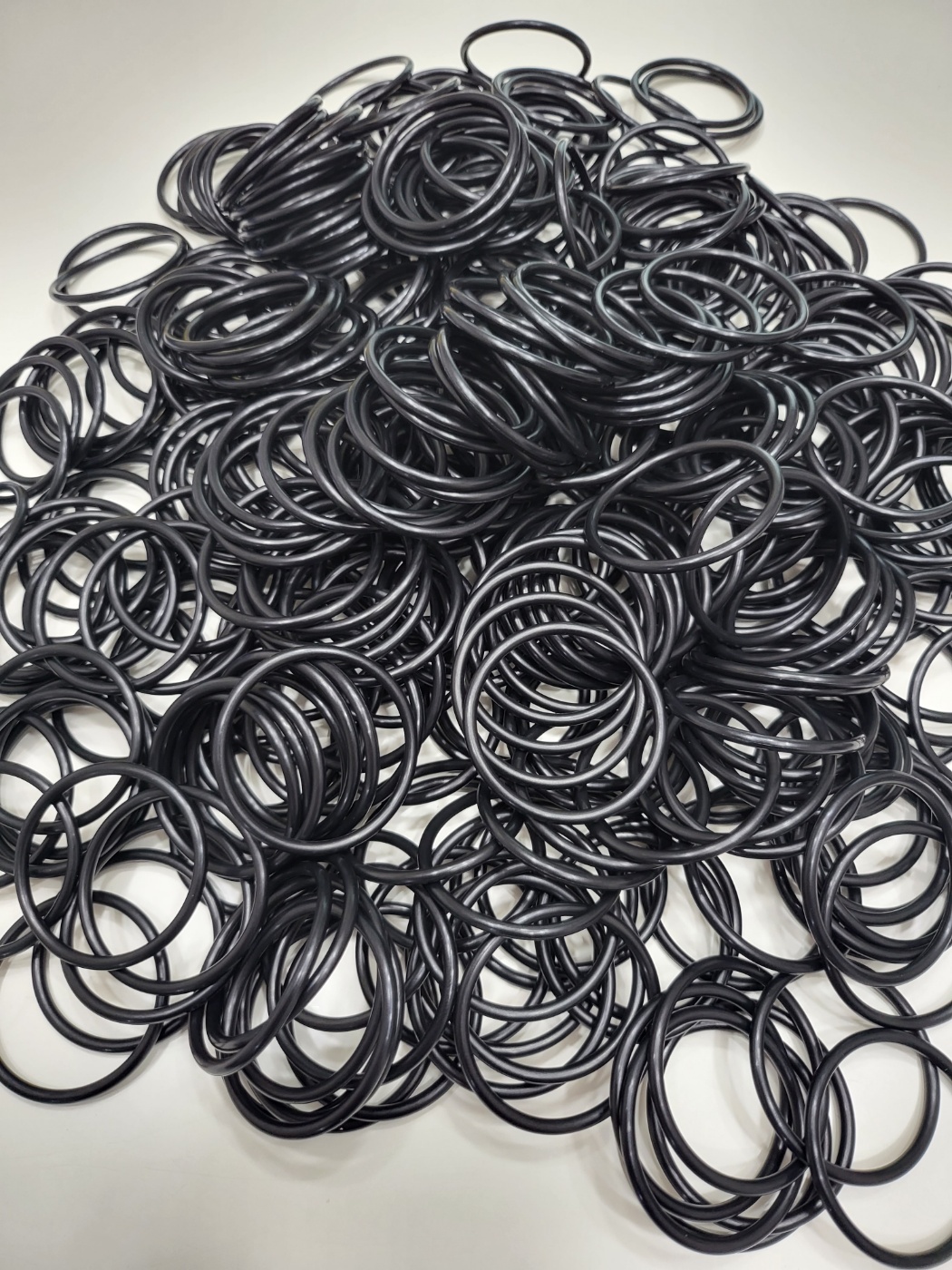

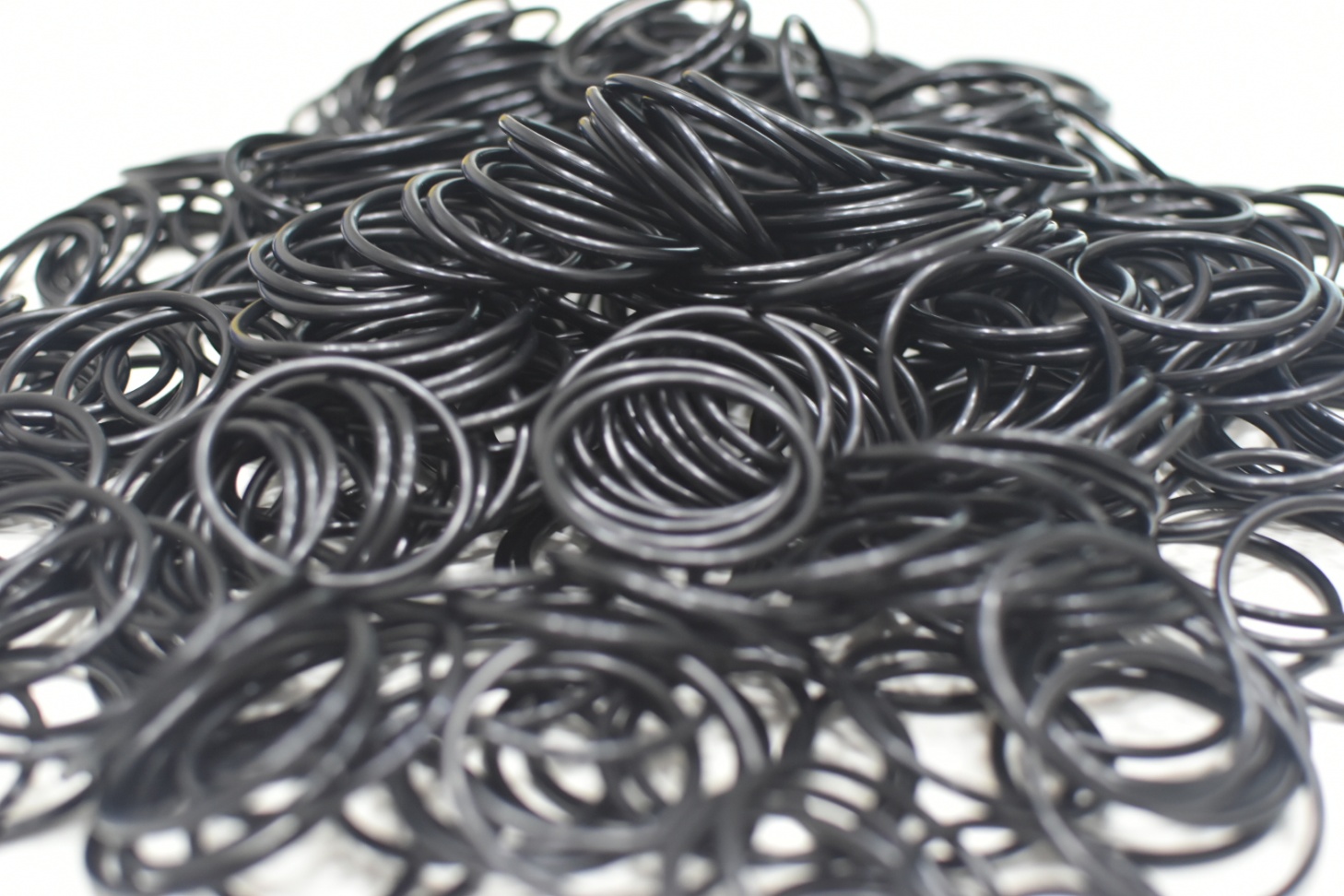

품명: O-RING
O'RING
오링
O링
재료: NBR (Nitrile Butadiene Rubber)
Buna-N
Nitrile
부나-N
니트릴
경도: 90 Shore A
작동 온도: -35~100℃
색상: Black
충족 사양: DIN EN 549
WL 5 5810
AS 528
ISO 3601
BS 1806
BS 4518
JIS B 2401
NF T 47-501
SMS 1586
리드 타임: 약 8~12 주
납기: 재고 유무에 따라 약 2~4일 이내
| SIZE | I.D.(㎜) | Tol. (±) | C.S.D.(㎜) | Tol. (±) | ||
| G25 | 1BG025 | 1BG-025 | 24.4 | 0.25 | 3.1 | 0.1 |
| G30 | 1BG030 | 1BG-030 | 29.4 | 0.29 | 3.1 | 0.1 |
| G35 | 1BG035 | 1BG-035 | 34.4 | 0.33 | 3.1 | 0.1 |
| G40 | 1BG040 | 1BG-040 | 39.4 | 0.37 | 3.1 | 0.1 |
| G45 | 1BG045 | 1BG-045 | 44.4 | 0.41 | 3.1 | 0.1 |
| G50 | 1BG050 | 1BG-050 | 49.4 | 0.45 | 3.1 | 0.1 |
| G55 | 1BG055 | 1BG-055 | 54.4 | 0.49 | 3.1 | 0.1 |
| G60 | 1BG060 | 1BG-060 | 59.4 | 0.53 | 3.1 | 0.1 |
| G65 | 1BG065 | 1BG-065 | 64.4 | 0.57 | 3.1 | 0.1 |
| G70 | 1BG070 | 1BG-070 | 69.4 | 0.61 | 3.1 | 0.1 |
| G75 | 1BG075 | 1BG-075 | 74.4 | 0.65 | 3.1 | 0.1 |
| G80 | 1BG080 | 1BG-080 | 79.4 | 0.69 | 3.1 | 0.1 |
| G85 | 1BG085 | 1BG-085 | 84.4 | 0.73 | 3.1 | 0.1 |
| G90 | 1BG090 | 1BG-090 | 89.4 | 0.77 | 3.1 | 0.1 |
| G95 | 1BG095 | 1BG-095 | 94.4 | 0.81 | 3.1 | 0.1 |
| G100 | 1BG100 | 1BG-100 | 99.4 | 0.85 | 3.1 | 0.1 |
| G105 | 1BG105 | 1BG-105 | 104.4 | 0.87 | 3.1 | 0.1 |
| G110 | 1BG110 | 1BG-110 | 109.4 | 0.91 | 3.1 | 0.1 |
| G115 | 1BG115 | 1BG-115 | 114.4 | 0.94 | 3.1 | 0.1 |
| G120 | 1BG120 | 1BG-120 | 119.4 | 0.98 | 3.1 | 0.1 |
| G125 | 1BG120 | 1BG-120 | 124.4 | 1.01 | 3.1 | 0.1 |
| G130 | 1BG130 | 1BG-130 | 129.4 | 1.05 | 3.1 | 0.1 |
| G135 | 1BG135 | 1BG-135 | 134.4 | 1.08 | 3.1 | 0.1 |
| G140 | 1BG140 | 1BG-140 | 139.4 | 1.12 | 3.1 | 0.1 |
| G145 | 1BG145 | 1BG-145 | 144.4 | 1.16 | 3.1 | 0.1 |
| G150 | 1BG150 | 1BG-150 | 149.3 | 1.19 | 5.7 | 0.13 |
| G155 | 1BG155 | 1BG-155 | 154.3 | 1.23 | 5.7 | 0.13 |
| G160 | 1BG160 | 1BG-160 | 159.3 | 1.26 | 5.7 | 0.13 |
| G165 | 1BG165 | 1BG-165 | 164.3 | 1.3 | 5.7 | 0.13 |
| G170 | 1BG170 | 1BG-170 | 169.3 | 1.33 | 5.7 | 0.13 |
| G175 | 1BG175 | 1BG-175 | 174.3 | 1.37 | 5.7 | 0.13 |
| G180 | 1BG180 | 1BG-180 | 179.3 | 1.4 | 5.7 | 0.13 |
| G185 | 1BG185 | 1BG-185 | 184.3 | 1.44 | 5.7 | 0.13 |
| G190 | 1BG190 | 1BG-190 | 189.3 | 1.47 | 5.7 | 0.13 |
| G195 | 1BG195 | 1BG-195 | 194.3 | 1.51 | 5.7 | 0.13 |
| G200 | 1BG200 | 1BG-200 | 199.3 | 1.55 | 5.7 | 0.13 |
| G205 | 1BG205 | 1BG-205 | 204.3 | 1.58 | 5.7 | 0.13 |
| G210 | 1BG210 | 1BG-210 | 209.3 | 1.61 | 5.7 | 0.13 |
| G215 | 1BG215 | 1BG-215 | 214.3 | 1.65 | 5.7 | 0.13 |
| G220 | 1BG220 | 1BG-220 | 219.3 | 1.68 | 5.7 | 0.13 |
| G225 | 1BG225 | 1BG-225 | 224.3 | 1.71 | 5.7 | 0.13 |
| G230 | 1BG230 | 1BG-230 | 229.3 | 1.73 | 5.7 | 0.13 |
| G235 | 1BG235 | 1BG-235 | 234.3 | 1.78 | 5.7 | 0.13 |
| G240 | 1BG240 | 1BG-240 | 239.3 | 1.81 | 5.7 | 0.13 |
| G245 | 1BG245 | 1BG-245 | 244.3 | 1.85 | 5.7 | 0.13 |
| G250 | 1BG250 | 1BG-250 | 249.3 | 1.88 | 5.7 | 0.13 |
| G255 | 1BG255 | 1BG-255 | 254.3 | 1.91 | 5.7 | 0.13 |
| G260 | 1BG260 | 1BG-260 | 259.3 | 1.94 | 5.7 | 0.13 |
| G265 | 1BG265 | 1BG-265 | 264.3 | 1.98 | 5.7 | 0.13 |
| G270 | 1BG270 | 1BG-270 | 269.3 | 2.01 | 5.7 | 0.13 |
| G275 | 1BG275 | 1BG-275 | 274.3 | 2.04 | 5.7 | 0.13 |
| G280 | 1BG280 | 1BG-280 | 279.3 | 2.07 | 5.7 | 0.13 |
| G285 | 1BG285 | 1BG-285 | 284.3 | 2.11 | 5.7 | 0.13 |
| G290 | 1BG290 | 1BG-290 | 289.3 | 2.14 | 5.7 | 0.13 |
| G295 | 1BG295 | 1BG-295 | 294.3 | 2.17 | 5.7 | 0.13 |
| G300 | 1BG300 | 1BG-300 | 299.3 | 2.2 | 5.7 | 0.13 |
| G305 | 1BG305 | 1BG-305 | 304.3 | 2.24 | 5.7 | 0.13 |
| G310 | 1BG310 | 1BG-310 | 309.3 | 2.27 | 5.7 | 0.13 |
| G315 | 1BG315 | 1BG-315 | 314.3 | 2.3 | 5.7 | 0.13 |
| G320 | 1BG320 | 1BG-320 | 319.3 | 2.33 | 5.7 | 0.13 |
| G325 | 1BG325 | 1BG-325 | 324.3 | 2.36 | 5.7 | 0.13 |
| G330 | 1BG330 | 1BG-330 | 329.3 | 2.39 | 5.7 | 0.13 |
| G335 | 1BG335 | 1BG-335 | 334.3 | 2.42 | 5.7 | 0.13 |
| G340 | 1BG340 | 1BG-340 | 339.3 | 2.45 | 5.7 | 0.13 |
| G345 | 1BG345 | 1BG-345 | 344.3 | 2.48 | 5.7 | 0.13 |
| G350 | 1BG350 | 1BG-350 | 349.3 | 2.51 | 5.7 | 0.13 |
| G355 | 1BG355 | 1BG-355 | 354.3 | 2.54 | 5.7 | 0.13 |
| G360 | 1BG360 | 1BG-360 | 359.3 | 2.57 | 5.7 | 0.13 |
| G365 | 1BG365 | 1BG-365 | 364.3 | 2.6 | 5.7 | 0.13 |
| G370 | 1BG370 | 1BG-370 | 369.3 | 2.63 | 5.7 | 0.13 |
| G375 | 1BG375 | 1BG-375 | 374.3 | 2.67 | 5.7 | 0.13 |
| G380 | 1BG380 | 1BG-380 | 379.3 | 2.7 | 5.7 | 0.13 |
| G385 | 1BG385 | 1BG-385 | 384.3 | 2.73 | 5.7 | 0.13 |
| G390 | 1BG390 | 1BG-390 | 389.3 | 2.77 | 5.7 | 0.13 |
| G395 | 1BG395 | 1BG-395 | 394.3 | 2.79 | 5.7 | 0.13 |
| G400 | 1BG400 | 1BG-400 | 399.3 | 2.82 | 5.7 | 0.13 |
| G405 | 1BG405 | 1BG-405 | 404.3 | 3 | 5.7 | 0.13 |
| G410 | 1BG410 | 1BG-410 | 409.3 | 3 | 5.7 | 0.13 |
| G415 | 1BG415 | 1BG-415 | 414.3 | 3 | 5.7 | 0.13 |
| G420 | 1BG420 | 1BG-420 | 419.3 | 3 | 5.7 | 0.13 |
| G425 | 1BG425 | 1BG-425 | 424.3 | 3 | 5.7 | 0.13 |
| G430 | 1BG430 | 1BG-430 | 429.3 | 3 | 5.7 | 0.13 |
| G435 | 1BG435 | 1BG-435 | 434.3 | 3 | 5.7 | 0.13 |
| G440 | 1BG440 | 1BG-440 | 439.3 | 3 | 5.7 | 0.13 |
| G445 | 1BG445 | 1BG-445 | 444.3 | 3 | 5.7 | 0.13 |
| G450 | 1BG450 | 1BG-450 | 449.3 | 3 | 5.7 | 0.13 |
| G455 | 1BG455 | 1BG-455 | 454.3 | 3.3 | 5.7 | 0.13 |
| G460 | 1BG460 | 1BG-460 | 459.3 | 3.3 | 5.7 | 0.13 |
| G465 | 1BG465 | 1BG-465 | 464.3 | 3.3 | 5.7 | 0.13 |
| G470 | 1BG470 | 1BG-470 | 469.3 | 3.3 | 5.7 | 0.13 |
| G475 | 1BG475 | 1BG-475 | 474.3 | 3.3 | 5.7 | 0.13 |
| G480 | 1BG480 | 1BG-480 | 479.3 | 3.3 | 5.7 | 0.13 |
| G485 | 1BG485 | 1BG-485 | 484.3 | 3.3 | 5.7 | 0.13 |
| G490 | 1BG490 | 1BG-490 | 489.3 | 3.3 | 5.7 | 0.13 |
| G495 | 1BG495 | 1BG-495 | 494.3 | 3.3 | 5.7 | 0.13 |
| G500 | 1BG500 | 1BG-500 | 499.3 | 3.3 | 5.7 | 0.13 |
| G510 | 1BG510 | 1BG-510 | 509.3 | 3.47 | 5.7 | 0.13 |
| G520 | 1BG520 | 1BG-520 | 519.3 | 3.53 | 5.7 | 0.13 |
| G530 | 1BG530 | 1BG-530 | 529.3 | 3.59 | 5.7 | 0.13 |
| G540 | 1BG540 | 1BG-540 | 539.3 | 3.65 | 5.7 | 0.13 |
| G550 | 1BG550 | 1BG-550 | 549.3 | 3.72 | 5.7 | 0.13 |
| G560 | 1BG560 | 1BG-560 | 559.3 | 3.78 | 5.7 | 0.13 |
| G570 | 1BG570 | 1BG-570 | 569.3 | 3.84 | 5.7 | 0.13 |
| G580 | 1BG580 | 1BG-580 | 579.3 | 3.9 | 5.7 | 0.13 |
| G590 | 1BG590 | 1BG-590 | 589.3 | 3.97 | 5.7 | 0.13 |
| G600 | 1BG600 | 1BG-600 | 599.3 | 4.03 | 5.7 | 0.13 |
| G605 | 1BG605 | 1BG-605 | 604.3 | 4.06 | 5.7 | 0.13 |
| G860 | 1BG860 | 1BG-860 | 859.3 | 5.63 | 5.7 | 0.13 |
| G910 | 1BG910 | 1BG-910 | 909.3 | 5.93 | 5.7 | 0.13 |
| SIZE | I.D.(㎜) | Tol. (±) | C.S.D.(㎜) | Tol. (±) | ||
| G25 | 1BG025 | 1BG-025 | 24.40 | 0.25 | 3.10 | 0.10 |
| G30 | 1BG030 | 1BG-030 | 29.40 | 0.29 | 3.10 | 0.10 |
| G35 | 1BG035 | 1BG-035 | 34.40 | 0.33 | 3.10 | 0.10 |
| G40 | 1BG040 | 1BG-040 | 39.40 | 0.37 | 3.10 | 0.10 |
| G45 | 1BG045 | 1BG-045 | 44.40 | 0.41 | 3.10 | 0.10 |
| G50 | 1BG050 | 1BG-050 | 49.40 | 0.45 | 3.10 | 0.10 |
| G55 | 1BG055 | 1BG-055 | 54.40 | 0.49 | 3.10 | 0.10 |
| G60 | 1BG060 | 1BG-060 | 59.40 | 0.53 | 3.10 | 0.10 |
| G65 | 1BG065 | 1BG-065 | 64.40 | 0.57 | 3.10 | 0.10 |
| G70 | 1BG070 | 1BG-070 | 69.40 | 0.61 | 3.10 | 0.10 |
| G75 | 1BG075 | 1BG-075 | 74.40 | 0.65 | 3.10 | 0.10 |
| G80 | 1BG080 | 1BG-080 | 79.40 | 0.69 | 3.10 | 0.10 |
| G85 | 1BG085 | 1BG-085 | 84.40 | 0.73 | 3.10 | 0.10 |
| G90 | 1BG090 | 1BG-090 | 89.40 | 0.77 | 3.10 | 0.10 |
| G95 | 1BG095 | 1BG-095 | 94.40 | 0.81 | 3.10 | 0.10 |
| G100 | 1BG100 | 1BG-100 | 99.40 | 0.85 | 3.10 | 0.10 |
| G105 | 1BG105 | 1BG-105 | 104.40 | 0.87 | 3.10 | 0.10 |
| G110 | 1BG110 | 1BG-110 | 109.40 | 0.91 | 3.10 | 0.10 |
| G115 | 1BG115 | 1BG-115 | 114.40 | 0.94 | 3.10 | 0.10 |
| G120 | 1BG120 | 1BG-120 | 119.40 | 0.98 | 3.10 | 0.10 |
| G125 | 1BG120 | 1BG-120 | 124.40 | 1.01 | 3.10 | 0.10 |
| G130 | 1BG130 | 1BG-130 | 129.40 | 1.05 | 3.10 | 0.10 |
| G135 | 1BG135 | 1BG-135 | 134.40 | 1.08 | 3.10 | 0.10 |
| G140 | 1BG140 | 1BG-140 | 139.40 | 1.12 | 3.10 | 0.10 |
| G145 | 1BG145 | 1BG-145 | 144.40 | 1.16 | 3.10 | 0.10 |
| G150 | 1BG150 | 1BG-150 | 149.30 | 1.19 | 5.70 | 0.13 |
| G155 | 1BG155 | 1BG-155 | 154.30 | 1.23 | 5.70 | 0.13 |
| G160 | 1BG160 | 1BG-160 | 159.30 | 1.26 | 5.70 | 0.13 |
| G165 | 1BG165 | 1BG-165 | 164.30 | 1.30 | 5.70 | 0.13 |
| G170 | 1BG170 | 1BG-170 | 169.30 | 1.33 | 5.70 | 0.13 |
| G175 | 1BG175 | 1BG-175 | 174.30 | 1.37 | 5.70 | 0.13 |
| G180 | 1BG180 | 1BG-180 | 179.30 | 1.40 | 5.70 | 0.13 |
| G185 | 1BG185 | 1BG-185 | 184.30 | 1.44 | 5.70 | 0.13 |
| G190 | 1BG190 | 1BG-190 | 189.30 | 1.47 | 5.70 | 0.13 |
| G195 | 1BG195 | 1BG-195 | 194.30 | 1.51 | 5.70 | 0.13 |
| G200 | 1BG200 | 1BG-200 | 199.30 | 1.55 | 5.70 | 0.13 |
| G205 | 1BG205 | 1BG-205 | 204.30 | 1.58 | 5.70 | 0.13 |
| G210 | 1BG210 | 1BG-210 | 209.30 | 1.61 | 5.70 | 0.13 |
| G215 | 1BG215 | 1BG-215 | 214.30 | 1.65 | 5.70 | 0.13 |
| G220 | 1BG220 | 1BG-220 | 219.30 | 1.68 | 5.70 | 0.13 |
| G225 | 1BG225 | 1BG-225 | 224.30 | 1.71 | 5.70 | 0.13 |
| G230 | 1BG230 | 1BG-230 | 229.30 | 1.73 | 5.70 | 0.13 |
| G235 | 1BG235 | 1BG-235 | 234.30 | 1.78 | 5.70 | 0.13 |
| G240 | 1BG240 | 1BG-240 | 239.30 | 1.81 | 5.70 | 0.13 |
| G245 | 1BG245 | 1BG-245 | 244.30 | 1.85 | 5.70 | 0.13 |
| G250 | 1BG250 | 1BG-250 | 249.30 | 1.88 | 5.70 | 0.13 |
| G255 | 1BG255 | 1BG-255 | 254.30 | 1.91 | 5.70 | 0.13 |
| G260 | 1BG260 | 1BG-260 | 259.30 | 1.94 | 5.70 | 0.13 |
| G265 | 1BG265 | 1BG-265 | 264.30 | 1.98 | 5.70 | 0.13 |
| G270 | 1BG270 | 1BG-270 | 269.30 | 2.01 | 5.70 | 0.13 |
| G275 | 1BG275 | 1BG-275 | 274.30 | 2.04 | 5.70 | 0.13 |
| G280 | 1BG280 | 1BG-280 | 279.30 | 2.07 | 5.70 | 0.13 |
| G285 | 1BG285 | 1BG-285 | 284.30 | 2.11 | 5.70 | 0.13 |
| G290 | 1BG290 | 1BG-290 | 289.30 | 2.14 | 5.70 | 0.13 |
| G295 | 1BG295 | 1BG-295 | 294.30 | 2.17 | 5.70 | 0.13 |
| G300 | 1BG300 | 1BG-300 | 299.30 | 2.20 | 5.70 | 0.13 |
| G305 | 1BG305 | 1BG-305 | 304.30 | 2.24 | 5.70 | 0.13 |
| G310 | 1BG310 | 1BG-310 | 309.30 | 2.27 | 5.70 | 0.13 |
| G315 | 1BG315 | 1BG-315 | 314.30 | 2.30 | 5.70 | 0.13 |
| G320 | 1BG320 | 1BG-320 | 319.30 | 2.33 | 5.70 | 0.13 |
| G325 | 1BG325 | 1BG-325 | 324.30 | 2.36 | 5.70 | 0.13 |
| G330 | 1BG330 | 1BG-330 | 329.30 | 2.39 | 5.70 | 0.13 |
| G335 | 1BG335 | 1BG-335 | 334.30 | 2.42 | 5.70 | 0.13 |
| G340 | 1BG340 | 1BG-340 | 339.30 | 2.45 | 5.70 | 0.13 |
| G345 | 1BG345 | 1BG-345 | 344.30 | 2.48 | 5.70 | 0.13 |
| G350 | 1BG350 | 1BG-350 | 349.30 | 2.51 | 5.70 | 0.13 |
| G355 | 1BG355 | 1BG-355 | 354.30 | 2.54 | 5.70 | 0.13 |
| G360 | 1BG360 | 1BG-360 | 359.30 | 2.57 | 5.70 | 0.13 |
| G365 | 1BG365 | 1BG-365 | 364.30 | 2.60 | 5.70 | 0.13 |
| G370 | 1BG370 | 1BG-370 | 369.30 | 2.63 | 5.70 | 0.13 |
| G375 | 1BG375 | 1BG-375 | 374.30 | 2.67 | 5.70 | 0.13 |
| G380 | 1BG380 | 1BG-380 | 379.30 | 2.70 | 5.70 | 0.13 |
| G385 | 1BG385 | 1BG-385 | 384.30 | 2.73 | 5.70 | 0.13 |
| G390 | 1BG390 | 1BG-390 | 389.30 | 2.77 | 5.70 | 0.13 |
| G395 | 1BG395 | 1BG-395 | 394.30 | 2.79 | 5.70 | 0.13 |
| G400 | 1BG400 | 1BG-400 | 399.30 | 2.82 | 5.70 | 0.13 |
| G405 | 1BG405 | 1BG-405 | 404.30 | 3.00 | 5.70 | 0.13 |
| G410 | 1BG410 | 1BG-410 | 409.30 | 3.00 | 5.70 | 0.13 |
| G415 | 1BG415 | 1BG-415 | 414.30 | 3.00 | 5.70 | 0.13 |
| G420 | 1BG420 | 1BG-420 | 419.30 | 3.00 | 5.70 | 0.13 |
| G425 | 1BG425 | 1BG-425 | 424.30 | 3.00 | 5.70 | 0.13 |
| G430 | 1BG430 | 1BG-430 | 429.30 | 3.00 | 5.70 | 0.13 |
| G435 | 1BG435 | 1BG-435 | 434.30 | 3.00 | 5.70 | 0.13 |
| G440 | 1BG440 | 1BG-440 | 439.30 | 3.00 | 5.70 | 0.13 |
| G445 | 1BG445 | 1BG-445 | 444.30 | 3.00 | 5.70 | 0.13 |
| G450 | 1BG450 | 1BG-450 | 449.30 | 3.00 | 5.70 | 0.13 |
| G455 | 1BG455 | 1BG-455 | 454.30 | 3.30 | 5.70 | 0.13 |
| G460 | 1BG460 | 1BG-460 | 459.30 | 3.30 | 5.70 | 0.13 |
| G465 | 1BG465 | 1BG-465 | 464.30 | 3.30 | 5.70 | 0.13 |
| G470 | 1BG470 | 1BG-470 | 469.30 | 3.30 | 5.70 | 0.13 |
| G475 | 1BG475 | 1BG-475 | 474.30 | 3.30 | 5.70 | 0.13 |
| G480 | 1BG480 | 1BG-480 | 479.30 | 3.30 | 5.70 | 0.13 |
| G485 | 1BG485 | 1BG-485 | 484.30 | 3.30 | 5.70 | 0.13 |
| G490 | 1BG490 | 1BG-490 | 489.30 | 3.30 | 5.70 | 0.13 |
| G495 | 1BG495 | 1BG-495 | 494.30 | 3.30 | 5.70 | 0.13 |
| G500 | 1BG500 | 1BG-500 | 499.30 | 3.30 | 5.70 | 0.13 |
| G510 | 1BG510 | 1BG-510 | 509.30 | 3.47 | 5.70 | 0.13 |
| G520 | 1BG520 | 1BG-520 | 519.30 | 3.53 | 5.70 | 0.13 |
| G530 | 1BG530 | 1BG-530 | 529.30 | 3.59 | 5.70 | 0.13 |
| G540 | 1BG540 | 1BG-540 | 539.30 | 3.65 | 5.70 | 0.13 |
| G550 | 1BG550 | 1BG-550 | 549.30 | 3.72 | 5.70 | 0.13 |
| G560 | 1BG560 | 1BG-560 | 559.30 | 3.78 | 5.70 | 0.13 |
| G570 | 1BG570 | 1BG-570 | 569.30 | 3.84 | 5.70 | 0.13 |
| G580 | 1BG580 | 1BG-580 | 579.30 | 3.90 | 5.70 | 0.13 |
| G590 | 1BG590 | 1BG-590 | 589.30 | 3.97 | 5.70 | 0.13 |
| G600 | 1BG600 | 1BG-600 | 599.30 | 4.03 | 5.70 | 0.13 |
| G605 | 1BG605 | 1BG-605 | 604.30 | 4.06 | 5.70 | 0.13 |
| G860 | 1BG860 | 1BG-860 | 859.30 | 5.63 | 5.70 | 0.13 |
| G910 | 1BG910 | 1BG-910 | 909.30 | 5.93 | 5.70 | 0.13 |
728x90
반응형
