N0552-90±5 Shore A, N552-90, Series JIS-G(고정용 또는 운동용), 니트릴 부타디엔 고무 NBR Nitrile-Butadiene Rubber, 우수한 압출 저항성 소재 Excellent Extrusion Resistant -34~+121℃

우수한 압출 저항성을 지닌 NBR 소재 입니다.

NBR material with Excellent Extrusion Resistance.



NBR [Nitrile Butadiene Rubber]-N0552-90±5 Shore A, Black, -34~+121℃

상표: 파카 하니핀

         파커 하니핀

         Parker Hannifin

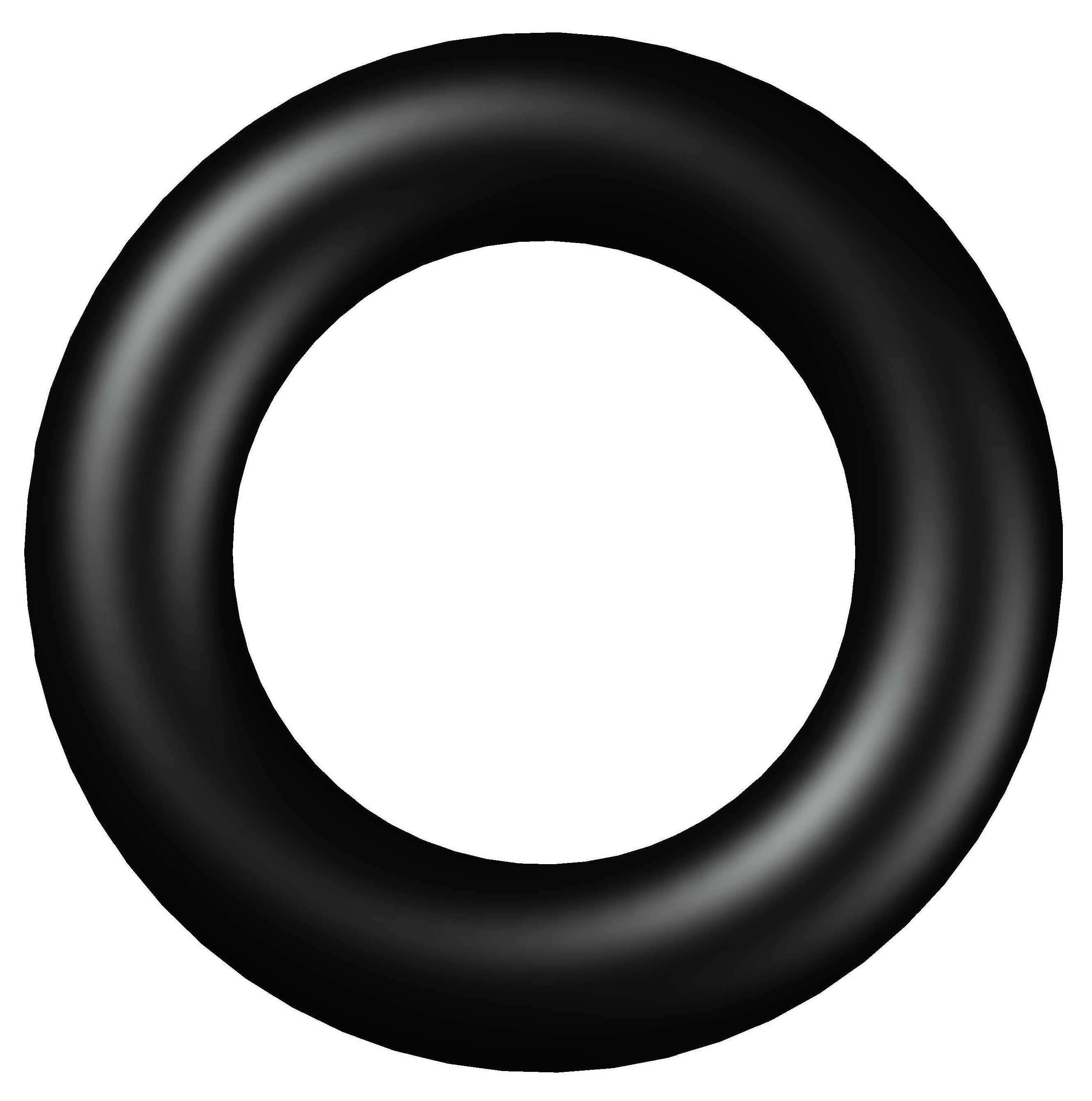

품명: 오링

        ORING

        O'RING

        O-Ring

JIS-G 계열

화합물 코드: N552

                  N0552

                  N552-90

                  N0552-90

고정용 또는 운동용

재료: NBR

        Buna-N

        부나-N

        니트릴 부타디엔 고무

        Nitrile Butadiene Rubber



경도: 90±5 Shore A



색상: 검정색

         Black



온도 범위: -34~+121℃



호환 유체: 범용(General Purpose)



내화학성: Air (oil-free)

              Compressed air (oily)

              Methanol

              Methyl Ethyl Ketone (MEK)

              Ethane

              Natural gas

              Petroleum (sulphur-free)

              Mineral oils (tests with NBR-1/ECI recommended prior to use with dynamic seals)

              Petroleum-besed lubricating oils

              Lubricating oils SAE 10, 20, 30, 40, 50

              HFC (water/polyglycol)

              HFAE (oil in water emulsion; mineral oils / synthethic esters)

              HFAS (mineral oil free, water-based synthethic fluids)

               PAO (polyalphaolefines)



충족 사양: DIN EN 549

               WL 5.5810

               AS 528

               ISO 3601

               BS 1806

               BS 4518

               JIS B 2401

               NF T 47-501

               SMS 1586



리드 타임: 약 6~12 주



납기: 15:00 기준으로

        이전 발주시 재고 여부에 따라 익일 또는 최대 리드 타임 후 공급될 수 있습니다.

NBR [Nitrile Butadiene Rubber]-N0552-90±5 Shore A, Black, -34~+121℃

SIZE	Part Number				I.D. (mm)	Tolerance ±	C.S.D. (mm)	Tolerance ±
G25	G25 N0552-90	G25 N552-90	G25-NBR-90	G25 NBR 90	24.4	0.25	3.10	0.1
G30	G30 N0552-90	G30 N552-90	G30-NBR-90	G30 NBR 90	29.4	0.29	3.10	0.1
G35	G35 N0552-90	G35 N552-90	G35-NBR-90	G35 NBR 90	34.4	0.33	3.10	0.1
G40	G40 N0552-90	G40 N552-90	G40-NBR-90	G40 NBR 90	39.4	0.37	3.10	0.1
G45	G45 N0552-90	G45 N552-90	G45-NBR-90	G45 NBR 90	44.4	0.41	3.10	0.1
G50	G50 N0552-90	G50 N552-90	G50-NBR-90	G50 NBR 90	49.4	0.45	3.10	0.1
G55	G55 N0552-90	G55 N552-90	G55-NBR-90	G55 NBR 90	54.4	0.49	3.10	0.1
G60	G60 N0552-90	G60 N552-90	G60-NBR-90	G60 NBR 90	59.4	0.53	3.10	0.1
G65	G65 N0552-90	G65 N552-90	G65-NBR-90	G65 NBR 90	64.4	0.57	3.10	0.1
G70	G70 N0552-90	G70 N552-90	G70-NBR-90	G70 NBR 90	69.4	0.61	3.10	0.1
G75	G75 N0552-90	G75 N552-90	G75-NBR-90	G75 NBR 90	74.4	0.65	3.10	0.1
G80	G80 N0552-90	G80 N552-90	G80-NBR-90	G80 NBR 90	79.4	0.69	3.10	0.1
G85	G85 N0552-90	G85 N552-90	G85-NBR-90	G85 NBR 90	84.4	0.73	3.10	0.1
G90	G90 N0552-90	G90 N552-90	G90-NBR-90	G90 NBR 90	89.4	0.77	3.10	0.1
G95	G95 N0552-90	G95 N552-90	G95-NBR-90	G95 NBR 90	94.4	0.81	3.10	0.1
G100	G100 N0552-90	G100 N552-90	G100-NBR-90	G100 NBR 90	99.4	0.85	3.10	0.1
G105	G105 N0552-90	G105 N552-90	G105-NBR-90	G105 NBR 90	104.4	0.87	3.10	0.1
G110	G110 N0552-90	G110 N552-90	G110-NBR-90	G110 NBR 90	109.4	0.91	3.10	0.1
G115	G115 N0552-90	G115 N552-90	G115-NBR-90	G115 NBR 90	114.4	0.94	3.10	0.1
G120	G120 N0552-90	G120 N552-90	G120-NBR-90	G120 NBR 90	119.4	0.98	3.10	0.1
G125	G125 N0552-90	G125 N552-90	G125-NBR-90	G125 NBR 90	124.4	1.01	3.10	0.1
G130	G130 N0552-90	G130 N552-90	G130-NBR-90	G130 NBR 90	129.4	1.05	3.10	0.1
G135	G135 N0552-90	G135 N552-90	G135-NBR-90	G135 NBR 90	134.4	1.08	3.10	0.1
G140	G140 N0552-90	G140 N552-90	G140-NBR-90	G140 NBR 90	139.4	1.12	3.10	0.1
G145	G145 N0552-90	G145 N552-90	G145-NBR-90	G145 NBR 90	144.4	1.16	3.10	0.1
G150	G150 N0552-90	G150 N552-90	G150-NBR-90	G150 NBR 90	149.3	1.19	5.70	0.13
G155	G155 N0552-90	G155 N552-90	G155-NBR-90	G155 NBR 90	154.3	1.23	5.70	0.13
G160	G160 N0552-90	G160 N552-90	G160-NBR-90	G160 NBR 90	159.3	1.26	5.70	0.13
G165	G165 N0552-90	G165 N552-90	G165-NBR-90	G165 NBR 90	164.3	1.3	5.70	0.13
G170	G170 N0552-90	G170 N552-90	G170-NBR-90	G170 NBR 90	169.3	1.33	5.70	0.13
G175	G175 N0552-90	G175 N552-90	G175-NBR-90	G175 NBR 90	174.3	1.37	5.70	0.13
G180	G180 N0552-90	G180 N552-90	G180-NBR-90	G180 NBR 90	179.3	1.4	5.70	0.13
G185	G185 N0552-90	G185 N552-90	G185-NBR-90	G185 NBR 90	184.3	1.44	5.70	0.13
G190	G190 N0552-90	G190 N552-90	G190-NBR-90	G190 NBR 90	189.3	1.47	5.70	0.13
G195	G195 N0552-90	G195 N552-90	G195-NBR-90	G195 NBR 90	194.3	1.51	5.70	0.13
G200	G200 N0552-90	G200 N552-90	G200-NBR-90	G200 NBR 90	199.3	1.55	5.70	0.13
G205	G205 N0552-90	G205 N552-90	G205-NBR-90	G205 NBR 90	204.3	1.58	5.70	0.13
G210	G210 N0552-90	G210 N552-90	G210-NBR-90	G210 NBR 90	209.3	1.61	5.70	0.13
G215	G215 N0552-90	G215 N552-90	G215-NBR-90	G215 NBR 90	214.3	1.65	5.70	0.13
G220	G220 N0552-90	G220 N552-90	G220-NBR-90	G220 NBR 90	219.3	1.68	5.70	0.13
G225	G225 N0552-90	G225 N552-90	G225-NBR-90	G225 NBR 90	224.3	1.71	5.70	0.13
G230	G230 N0552-90	G230 N552-90	G230-NBR-90	G230 NBR 90	229.3	1.73	5.70	0.13
G235	G235 N0552-90	G235 N552-90	G235-NBR-90	G235 NBR 90	234.3	1.78	5.70	0.13
G240	G240 N0552-90	G240 N552-90	G240-NBR-90	G240 NBR 90	239.3	1.81	5.70	0.13
G245	G245 N0552-90	G245 N552-90	G245-NBR-90	G245 NBR 90	244.3	1.85	5.70	0.13
G250	G250 N0552-90	G250 N552-90	G250-NBR-90	G250 NBR 90	249.3	1.88	5.70	0.13
G255	G255 N0552-90	G255 N552-90	G255-NBR-90	G255 NBR 90	254.3	1.91	5.70	0.13
G260	G260 N0552-90	G260 N552-90	G260-NBR-90	G260 NBR 90	259.3	1.94	5.70	0.13
G265	G265 N0552-90	G265 N552-90	G265-NBR-90	G265 NBR 90	264.3	1.98	5.70	0.13
G270	G270 N0552-90	G270 N552-90	G270-NBR-90	G270 NBR 90	269.3	2.01	5.70	0.13
G275	G275 N0552-90	G275 N552-90	G275-NBR-90	G275 NBR 90	274.3	2.04	5.70	0.13
G280	G280 N0552-90	G280 N552-90	G280-NBR-90	G280 NBR 90	279.3	2.07	5.70	0.13
G285	G285 N0552-90	G285 N552-90	G285-NBR-90	G285 NBR 90	284.3	2.11	5.70	0.13
G290	G290 N0552-90	G290 N552-90	G290-NBR-90	G290 NBR 90	289.3	2.14	5.70	0.13
G295	G295 N0552-90	G295 N552-90	G295-NBR-90	G295 NBR 90	294.3	2.17	5.70	0.13
